Evaluate Proton Plan Robustness

author: OpenTPS team

In this example, we evaluate an optimized ion plan. It is possible to assess range and setup errors and generate DVHs.

running time: ~ 45 minutes

Setting up the environment in google collab

import sys
if "google.colab" in sys.modules:
    from IPython import get_ipython
    get_ipython().system('git clone https://gitlab.com/openmcsquare/opentps.git')
    get_ipython().system('pip install ./opentps')
    get_ipython().system('pip install scipy==1.10.1')
    import opentps

imports

import os
import datetime
import logging

import numpy as np
from matplotlib import pyplot as plt

import the needed opentps.core packages

from opentps.core.data.images import CTImage
from opentps.core.data.images import ROIMask
from opentps.core.data.plan._protonPlanDesign import ProtonPlanDesign
from opentps.core.data import Patient
from opentps.core.io import mcsquareIO
from opentps.core.io.scannerReader import readScanner
from opentps.core.io.serializedObjectIO import saveRTPlan, loadRTPlan
from opentps.core.processing.doseCalculation.doseCalculationConfig import DoseCalculationConfig
from opentps.core.processing.doseCalculation.protons.mcsquareDoseCalculator import MCsquareDoseCalculator
from opentps.core.processing.planEvaluation.robustnessEvaluation import RobustnessEval

logger = logging.getLogger(__name__)

Output path

output_path = os.path.join(os.getcwd(), 'Proton_Robust_Output_Example')
if not os.path.exists(output_path):
    os.makedirs(output_path)
logger.info('Files will be stored in {}'.format(output_path))

CT calibration and BDL

ctCalibration = readScanner(DoseCalculationConfig().scannerFolder)
bdl = mcsquareIO.readBDL(DoseCalculationConfig().bdlFile)

CT and ROI creation

Generic example: box of water with squared target

patient = Patient()
patient.name = 'Patient'

ctSize = 150

ct = CTImage()
ct.name = 'CT'
ct.patient = patient


huAir = -1024.
huWater = ctCalibration.convertRSP2HU(1.)
data = huAir * np.ones((ctSize, ctSize, ctSize))
data[:, 50:, :] = huWater
ct.imageArray = data

roi = ROIMask()
roi.patient = patient
roi.name = 'TV'
roi.color = (255, 0, 0) # red
data = np.zeros((ctSize, ctSize, ctSize)).astype(bool)
data[100:120, 100:120, 100:120] = True
roi.imageArray = data

Design plan

beamNames = ["Beam1"]
gantryAngles = [90.]
couchAngles = [0.]

Configure MCsquare

mc2 = MCsquareDoseCalculator()
mc2.beamModel = bdl
mc2.nbPrimaries = 1e3
mc2.statUncertainty = 2.
mc2.ctCalibration = ctCalibration

Load / Generate new plan

plan_file = os.path.join(output_path, "Plan_Proton_WaterPhantom_cropped_optimized.tps")

if os.path.isfile(plan_file):
    plan = loadRTPlan(plan_file)
    print('Plan loaded')
else:
    planInit = ProtonPlanDesign()
    planInit.ct = ct
    planInit.gantryAngles = gantryAngles
    planInit.beamNames = beamNames
    planInit.couchAngles = couchAngles
    planInit.calibration = ctCalibration
    planInit.spotSpacing = 10.0
    planInit.layerSpacing = 10.0
    planInit.targetMargin = 5.0
    planInit.setScoringParameters(scoringSpacing=[2, 2, 2], adapt_gridSize_to_new_spacing=True)
    # needs to be called after scoringGrid settings but prior to spot placement
    planInit.defineTargetMaskAndPrescription(target = roi, targetPrescription = 20.)

    plan = planInit.buildPlan()  # Spot placement
    plan.PlanName = "NewPlan"

Load / Generate scenarios

scenario_folder = os.path.join(output_path,'RobustnessTest')
if os.path.isdir(scenario_folder):
    scenarios = RobustnessEval()
    scenarios.selectionStrategy = RobustnessEval.Strategies.ALL
    scenarios.setupSystematicError = plan.planDesign.robustnessEval.setupSystematicError
    scenarios.setupRandomError = plan.planDesign.robustnessEval.setupRandomError
    scenarios.rangeSystematicError = plan.planDesign.robustnessEval.rangeSystematicError
    scenarios.load(scenario_folder)
else:
    # MCsquare config for scenario dose computation
    mc2.nbPrimaries = 1e7
    plan.planDesign.robustnessEval = RobustnessEval()
    plan.planDesign.robustnessEval.setupSystematicError = [5.0, 5.0, 5.0]  # mm
    plan.planDesign.robustnessEval.setupRandomError = [0.0, 0.0, 0.0]  # mm (sigma)
    plan.planDesign.robustnessEval.rangeSystematicError = 3.0  # %

    # Regular scenario sampling
    plan.planDesign.robustnessEval.selectionStrategy = plan.planDesign.robustnessEval.Strategies.REDUCED_SET

    # All scenarios (includes diagonals on sphere)
    # plan.planDesign.robustnessEval.selectionStrategy = plan.planDesign.robustnessEval.Strategies.ALL

    # Random scenario sampling
    #plan.planDesign.robustnessEval.selectionStrategy = plan.planDesign.robustnessEval.Strategies.RANDOM
    plan.planDesign.robustnessEval.numScenarios = 30 # specify how many random scenarios to simulate, default = 100

    plan.patient = None
    # run MCsquare simulation
    scenarios = mc2.computeRobustScenario(ct, plan, [roi])
    output_folder = os.path.join(output_path, "RobustnessTest")
    scenarios.save(output_folder)

Robustness analysis

scenarios.analyzeErrorSpace(ct, "D95", roi, plan.planDesign.objectives.targetPrescription)
scenarios.printInfo()
scenarios.recomputeDVH([roi])

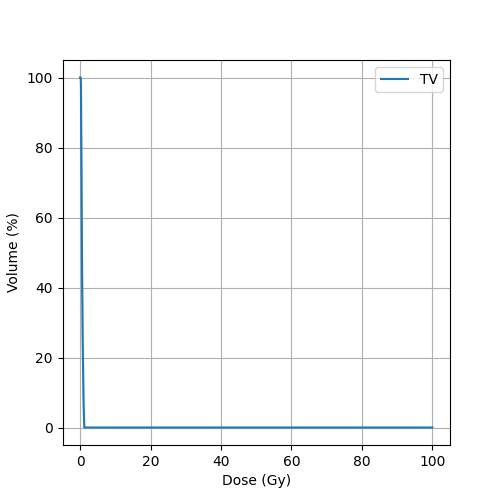

Display DVH + DVH-bands

fig, ax = plt.subplots(1, 1, figsize=(5, 5))
for dvh_band in scenarios.dvhBands:
    phigh = ax.plot(dvh_band._dose, dvh_band._volumeHigh, alpha=0)
    plow = ax.plot(dvh_band._dose, dvh_band._volumeLow, alpha=0)
    pNominal = ax.plot(dvh_band._nominalDVH._dose, dvh_band._nominalDVH._volume, label=dvh_band._roiName, color = 'C0')
    pfill = ax.fill_between(dvh_band._dose, dvh_band._volumeHigh, dvh_band._volumeLow, alpha=0.2, color='C0')
ax.set_xlabel("Dose (Gy)")
ax.set_ylabel("Volume (%)")
plt.grid(True)
plt.legend()
plt.savefig(f'{output_path}/EvaluateRobustness.png', format = 'png')
plt.show()
