Applying Baseline Shift to a Model#
author: OpenTPS team
This example demonstrates how to apply a baseline shift to a model and visualize the results.
running time: ~ 5 minutes
Setting up the environment in google collab#
import sys
if "google.colab" in sys.modules:
from IPython import get_ipython
get_ipython().system('git clone https://gitlab.com/openmcsquare/opentps.git')
get_ipython().system('pip install ./opentps')
import opentps
imports
import numpy as np
import matplotlib.pyplot as plt
import logging
import math
import os
import the needed opentps.core packages
from opentps.core.processing.imageProcessing.syntheticDeformation import applyBaselineShift
from opentps.core.data.dynamicData._dynamic3DModel import Dynamic3DModel
from opentps.core.data.dynamicData._dynamic3DSequence import Dynamic3DSequence
from opentps.core.data.images import CTImage
from opentps.core.data.images import ROIMask
logger = logging.getLogger(__name__)
Output path#
output_path = os.path.join(os.getcwd(), 'Output', 'ExampleApplyBaselineShiftToModel')
if not os.path.exists(output_path):
os.makedirs(output_path)
logger.info('Files will be stored in {}'.format(output_path))
Synthetic 4DCT generation function#
def getPhasesPositions(numberOfPhases, minValue, maxValue):
angleList = np.linspace(0, 2 * math.pi, numberOfPhases + 1)[:-1]
cosList = np.cos(angleList)
diff = maxValue - minValue
posList = minValue + diff / 2 + cosList * diff / 2
return posList.astype(np.uint8)
def createSynthetic3DCT(diaphragmPos = 20, targetPos = [50, 100, 35], spacing=[1, 1, 2], returnTumorMask = False):
# GENERATE SYNTHETIC CT IMAGE
# background
im = np.full((170, 170, 100), -1000)
im[20:150, 70:130, :] = 0
# left lung
im[30:70, 80:120, diaphragmPos:] = -800
# right lung
im[100:140, 80:120, diaphragmPos:] = -800
# target
im[targetPos[0]-5:targetPos[0]+5, targetPos[1]-5:targetPos[1]+5, targetPos[2]-5:targetPos[2]+5] = 0
# vertebral column
im[80:90, 95:105, :] = 800
# rib
im[22:26, 90:110, 46:50] = 800
# couch
im[:, 130:135, :] = 100
ct = CTImage(imageArray=im, name='fixed', origin=[0, 0, 0], spacing=spacing)
if returnTumorMask:
mask = np.full((170, 170, 100), 0)
mask[targetPos[0]-5:targetPos[0]+5, targetPos[1]-5:targetPos[1]+5, targetPos[2]-5:targetPos[2]+5] = 1
roi = ROIMask(imageArray=mask, origin=[0, 0, 0], spacing=spacing)
return ct, roi
else:
return ct
def createSynthetic4DCT(numberOfPhases=4, spacing=[1, 1, 2], returnTumorMasks=False, motionNoise=True):
# GENERATE SYNTHETIC 4D INPUT SEQUENCE
CT4D = Dynamic3DSequence()
## For the diaphragm position
diaphMotionAmp = 12
diaphMinPos = 20
diaphPosList = getPhasesPositions(numberOfPhases, diaphMinPos, diaphMinPos+diaphMotionAmp)
if motionNoise:
diaphNoise = [[3, 1],
[6, -1],
[9, -1],
[12, 1],
[15, 1]]
else:
diaphNoise = [[3, 0],
[6, 0],
[9, 0],
[12, 0],
[15, 0]]
for elemIdx in range(len(diaphNoise)):
if diaphNoise[elemIdx][0] <= numberOfPhases - 1:
diaphPosList[diaphNoise[elemIdx][0]] += diaphNoise[elemIdx][1]
## For the target z position
zMotionAmp = int(np.round(diaphMotionAmp * 0.8))
zMinPos = 40
zPosList = getPhasesPositions(numberOfPhases, zMinPos, zMinPos+zMotionAmp)
if motionNoise:
zNoise = [[3, 1],
[6, -1],
[9, -1],
[12, 1],
[15, 1]]
else:
zNoise = [[3, 0],
[6, 0],
[9, 0],
[12, 0],
[15, 0]]
for elemIdx in range(len(zNoise)):
if zNoise[elemIdx][0] <= numberOfPhases - 1:
zPosList[zNoise[elemIdx][0]] += zNoise[elemIdx][1]
## For the target x position
xMotionAmp = 6
xMinPos = 42
xPosList = getPhasesPositions(numberOfPhases, xMinPos, xMinPos+xMotionAmp)
if motionNoise:
xNoise = [[3, 1],
[6, -1],
[9, -1],
[12, 1],
[15, 1]]
else:
xNoise = [[3, 0],
[6, 0],
[9, 0],
[12, 0],
[15, 0]]
for elemIdx in range(len(xNoise)):
if xNoise[elemIdx][0] <= numberOfPhases-1:
xPosList[xNoise[elemIdx][0]] += xNoise[elemIdx][1]
xPosList = np.roll(xPosList, 2)
# print('xPosList', xPosList)
phaseList = []
if returnTumorMasks:
maskList = []
for phaseIndex in range(numberOfPhases):
phase, mask = createSynthetic3DCT(targetPos=[xPosList[phaseIndex], 95, zPosList[phaseIndex]], diaphragmPos=diaphPosList[phaseIndex], spacing=spacing, returnTumorMask=returnTumorMasks)
phaseList.append(phase)
maskList.append(mask)
else:
for phaseIndex in range(numberOfPhases):
phase = createSynthetic3DCT(targetPos=[xPosList[phaseIndex], 95, zPosList[phaseIndex]], diaphragmPos=diaphPosList[phaseIndex], spacing=spacing)
phaseList.append(phase)
CT4D.dyn3DImageList = phaseList
if returnTumorMasks:
return CT4D, maskList
else:
return CT4D
Generate synthetic 4DCT, mask, and MidP#
# GENERATE SYNTHETIC 4DCT
CT4D = createSynthetic4DCT()
# GENERATE MASK
mask = np.full(CT4D.dyn3DImageList[0].gridSize, 0)
mask[38:52, 87:103, 39:54] = 1
roi = ROIMask(imageArray=mask, origin=[0, 0, 0], spacing=[1, 1, 1.5])
# GENERATE MIDP
Model = Dynamic3DModel()
Model.computeMidPositionImage(CT4D, 0, tryGPU=True)
Dynamic 3D Sequence Created with 0 images
Apply baseline shift#
ModelShifted, maskShifted = applyBaselineShift(Model, roi, [5, 0, 10])
Regenerate 4D sequences from models#
CT4DRegen = Dynamic3DSequence()
for i in range(len(CT4D.dyn3DImageList)):
CT4DRegen.dyn3DImageList.append(Model.generate3DImage(i / len(CT4D.dyn3DImageList), amplitude=1))
CT4DShifted = Dynamic3DSequence()
for i in range(len(CT4D.dyn3DImageList)):
CT4DShifted.dyn3DImageList.append(ModelShifted.generate3DImage(i/len(CT4D.dyn3DImageList), amplitude=1))
Dynamic 3D Sequence Created with 0 images
Dynamic 3D Sequence Created with 0 images
Display results#

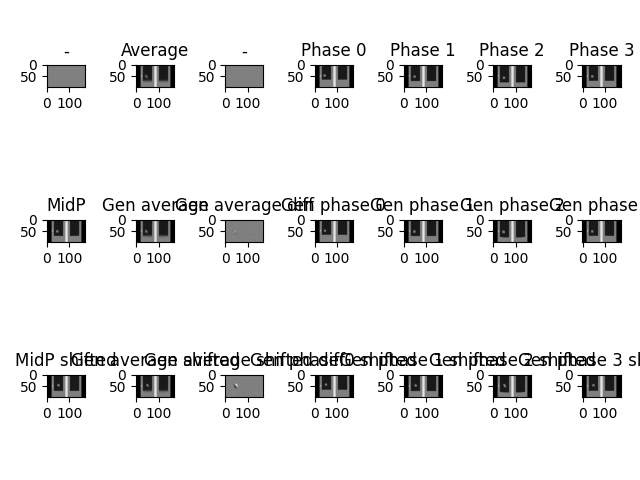

fig, ax = plt.subplots(3, 7)
fig.tight_layout()
y_slice = 95
ax[1, 0].imshow(Model.midp.imageArray[:, y_slice, :].T[::-1, ::1], cmap='gray', origin='upper', vmin=-1000, vmax=1000)
ax[1, 0].title.set_text('MidP')
ax[2, 0].imshow(ModelShifted.midp.imageArray[:, y_slice, :].T[::-1, ::1], cmap='gray', origin='upper', vmin=-1000, vmax=1000)
ax[2, 0].title.set_text('MidP shifted')
average = CT4D.dyn3DImageList[0].copy()
for i in range(len(CT4D.dyn3DImageList)-1):
average._imageArray += CT4D.dyn3DImageList[i+1]._imageArray
average._imageArray = average.imageArray/len(CT4D.dyn3DImageList)
averageRegen = CT4DRegen.dyn3DImageList[0].copy()
for i in range(len(CT4DRegen.dyn3DImageList) - 1):
averageRegen._imageArray += CT4DRegen.dyn3DImageList[i + 1]._imageArray
averageRegen._imageArray = averageRegen.imageArray / len(CT4DRegen.dyn3DImageList)
averageShifted = CT4DShifted.dyn3DImageList[0].copy()
for i in range(len(CT4DShifted.dyn3DImageList) - 1):
averageShifted._imageArray += CT4DShifted.dyn3DImageList[i + 1]._imageArray
averageShifted._imageArray = averageShifted.imageArray / len(CT4DShifted.dyn3DImageList)
ax[0, 1].imshow(average.imageArray[:, y_slice, :].T[::-1, ::1], cmap='gray', origin='upper', vmin=-1000, vmax=1000)
ax[0, 1].title.set_text('Average')
ax[1, 1].imshow(averageRegen.imageArray[:, y_slice, :].T[::-1, ::1], cmap='gray', origin='upper', vmin=-1000, vmax=1000)
ax[1, 1].title.set_text('Gen average')
ax[2, 1].imshow(averageShifted.imageArray[:, y_slice, :].T[::-1, ::1], cmap='gray', origin='upper', vmin=-1000, vmax=1000)
ax[2, 1].title.set_text('Gen average shifted')
averageRegen._imageArray -= average._imageArray
averageShifted._imageArray -= average._imageArray
average._imageArray -= average._imageArray
ax[0, 0].imshow(average.imageArray[:, y_slice, :].T[::-1, ::1], cmap='gray', origin='upper', vmin=-1000, vmax=1000)
ax[0, 0].title.set_text('-')
ax[0, 2].imshow(average.imageArray[:, y_slice, :].T[::-1, ::1], cmap='gray', origin='upper', vmin=-1000, vmax=1000)
ax[0, 2].title.set_text('-')
ax[1, 2].imshow(averageRegen.imageArray[:, y_slice, :].T[::-1, ::1], cmap='gray', origin='upper', vmin=-1000, vmax=1000)
ax[1, 2].title.set_text('Gen average diff')
ax[2, 2].imshow(averageShifted.imageArray[:, y_slice, :].T[::-1, ::1], cmap='gray', origin='upper', vmin=-1000, vmax=1000)
ax[2, 2].title.set_text('Gen average shifted diff')
ax[0, 3].imshow(CT4D.dyn3DImageList[0].imageArray[:, y_slice, :].T[::-1, ::1], cmap='gray', origin='upper', vmin=-1000, vmax=1000)
ax[0, 3].title.set_text('Phase 0')
ax[1, 3].imshow(CT4DRegen.dyn3DImageList[0].imageArray[:, y_slice, :].T[::-1, ::1], cmap='gray', origin='upper', vmin=-1000, vmax=1000)
ax[1, 3].title.set_text('Gen phase 0')
ax[2, 3].imshow(CT4DShifted.dyn3DImageList[0].imageArray[:, y_slice, :].T[::-1, ::1], cmap='gray', origin='upper', vmin=-1000, vmax=1000)
ax[2, 3].title.set_text('Gen phase 0 shifted')
ax[0, 4].imshow(CT4D.dyn3DImageList[1].imageArray[:, y_slice, :].T[::-1, ::1], cmap='gray', origin='upper', vmin=-1000, vmax=1000)
ax[0, 4].title.set_text('Phase 1')
ax[1, 4].imshow(CT4DRegen.dyn3DImageList[1].imageArray[:, y_slice, :].T[::-1, ::1], cmap='gray', origin='upper', vmin=-1000, vmax=1000)
ax[1, 4].title.set_text('Gen phase 1')
ax[2, 4].imshow(CT4DShifted.dyn3DImageList[1].imageArray[:, y_slice, :].T[::-1, ::1], cmap='gray', origin='upper', vmin=-1000, vmax=1000)
ax[2, 4].title.set_text('Gen phase 1 shifted')
ax[0, 5].imshow(CT4D.dyn3DImageList[2].imageArray[:, y_slice, :].T[::-1, ::1], cmap='gray', origin='upper', vmin=-1000, vmax=1000)
ax[0, 5].title.set_text('Phase 2')
ax[1, 5].imshow(CT4DRegen.dyn3DImageList[2].imageArray[:, y_slice, :].T[::-1, ::1], cmap='gray', origin='upper', vmin=-1000, vmax=1000)
ax[1, 5].title.set_text('Gen phase 2')
ax[2, 5].imshow(CT4DShifted.dyn3DImageList[2].imageArray[:, y_slice, :].T[::-1, ::1], cmap='gray', origin='upper', vmin=-1000, vmax=1000)
ax[2, 5].title.set_text('Gen phase 2 shifted')
ax[0, 6].imshow(CT4D.dyn3DImageList[3].imageArray[:, y_slice, :].T[::-1, ::1], cmap='gray', origin='upper', vmin=-1000, vmax=1000)
ax[0, 6].title.set_text('Phase 3')
ax[1, 6].imshow(CT4DRegen.dyn3DImageList[3].imageArray[:, y_slice, :].T[::-1, ::1], cmap='gray', origin='upper', vmin=-1000, vmax=1000)
ax[1, 6].title.set_text('Gen phase 3')
ax[2, 6].imshow(CT4DShifted.dyn3DImageList[3].imageArray[:, y_slice, :].T[::-1, ::1], cmap='gray', origin='upper', vmin=-1000, vmax=1000)
ax[2, 6].title.set_text('Gen phase 3 shifted')
plt.savefig(os.path.join(output_path, 'BaselinesSHift.png'))
print('done')
plt.show()
