Transform 3D

author: OpenTPS team

This example demonstrates how to apply a 3D transformation to a synthetic CT image using the OpenTPS library.

running time: ~ 6 minutes

Setting up the environment in google collab

import sys
if "google.colab" in sys.modules:
    from IPython import get_ipython
    get_ipython().system('git clone https://gitlab.com/openmcsquare/opentps.git')
    get_ipython().system('pip install ./opentps')

    import opentps

imports

import copy

import matplotlib.pyplot as plt
from matplotlib.animation import FuncAnimation
import logging
import numpy as np
import math
import os

import the needed opentps.core packages

from opentps.core.data.images import VectorField3D
from opentps.core.data.dynamicData._dynamic3DModel import Dynamic3DModel
from opentps.core.data.dynamicData._dynamic3DSequence import Dynamic3DSequence
from opentps.core.data._transform3D import Transform3D
from opentps.core.processing.imageProcessing.resampler3D import resampleImage3DOnImage3D
from opentps.core.processing.imageProcessing.imageTransform3D import rotateData, translateData
from opentps.core.processing.imageProcessing.resampler3D import resample
from opentps.core.data.images import CTImage
from opentps.core.data.images import ROIMask

logger = logging.getLogger(__name__)

Output path

output_path = os.path.join(os.getcwd(), 'Output', 'ExampleTransform3D')
if not os.path.exists(output_path):
        os.makedirs(output_path)
logger.info('Files will be stored in {}'.format(output_path))

Animation function

def showModelWithAnimatedFields(model):

    for field in model.deformationList:
        field.resample(spacing=model.midp.spacing, gridSize=model.midp.gridSize, origin=model.midp.origin)

    y_slice = int(model.midp.gridSize[1] / 2)

    plt.figure()
    fig = plt.gcf()

    def updateAnim(imageIndex):
        fig.clear()
        compX = model.deformationList[imageIndex].velocity.imageArray[:, y_slice, :, 0]
        compZ = model.deformationList[imageIndex].velocity.imageArray[:, y_slice, :, 2]
        plt.imshow(model.midp.imageArray[:, y_slice, :][::5, ::5], cmap='gray')
        plt.quiver(compZ[::5, ::5], compX[::5, ::5], alpha=0.2, color='red', angles='xy', scale_units='xy', scale=5)

    anim = FuncAnimation(fig, updateAnim, frames=len(model.deformationList), interval=300)

    # anim.save('D:/anim.gif')
    plt.show()

Synthetic 4DCT generation function

def getPhasesPositions(numberOfPhases, minValue, maxValue):

    angleList = np.linspace(0, 2 * math.pi, numberOfPhases + 1)[:-1]
    cosList = np.cos(angleList)

    diff = maxValue - minValue

    posList = minValue + diff / 2 + cosList * diff / 2

    return posList.astype(np.uint8)

def createSynthetic3DCT(diaphragmPos = 20, targetPos = [50, 100, 35], spacing=[1, 1, 2], returnTumorMask = False):
    # GENERATE SYNTHETIC CT IMAGE
    # background
    im = np.full((170, 170, 100), -1000)
    im[20:150, 70:130, :] = 0
    # left lung
    im[30:70, 80:120, diaphragmPos:] = -800
    # right lung
    im[100:140, 80:120, diaphragmPos:] = -800
    # target
    im[targetPos[0]-5:targetPos[0]+5, targetPos[1]-5:targetPos[1]+5, targetPos[2]-5:targetPos[2]+5] = 0
    # vertebral column
    im[80:90, 95:105, :] = 800
    # rib
    im[22:26, 90:110, 46:50] = 800
    # couch
    im[:, 130:135, :] = 100
    ct = CTImage(imageArray=im, name='fixed', origin=[0, 0, 0], spacing=spacing)

    if returnTumorMask:
        mask = np.full((170, 170, 100), 0)
        mask[targetPos[0]-5:targetPos[0]+5, targetPos[1]-5:targetPos[1]+5, targetPos[2]-5:targetPos[2]+5] = 1
        roi = ROIMask(imageArray=mask, origin=[0, 0, 0], spacing=spacing)

        return ct, roi

    else:
        return ct


def createSynthetic4DCT(numberOfPhases=4, spacing=[1, 1, 2], returnTumorMasks=False, motionNoise=True):

    # GENERATE SYNTHETIC 4D INPUT SEQUENCE
    CT4D = Dynamic3DSequence()

    ## For the diaphragm position
    diaphMotionAmp = 12
    diaphMinPos = 20
    diaphPosList = getPhasesPositions(numberOfPhases, diaphMinPos, diaphMinPos+diaphMotionAmp)

    if motionNoise:
        diaphNoise = [[3, 1],
                  [6, -1],
                  [9, -1],
                  [12, 1],
                  [15, 1]]
    else:
        diaphNoise = [[3, 0],
                      [6, 0],
                      [9, 0],
                      [12, 0],
                      [15, 0]]

    for elemIdx in range(len(diaphNoise)):
        if diaphNoise[elemIdx][0] <= numberOfPhases - 1:
            diaphPosList[diaphNoise[elemIdx][0]] += diaphNoise[elemIdx][1]

    ## For the target z position
    zMotionAmp = int(np.round(diaphMotionAmp * 0.8))
    zMinPos = 40
    zPosList = getPhasesPositions(numberOfPhases, zMinPos, zMinPos+zMotionAmp)

    if motionNoise:
        zNoise = [[3, 1],
                  [6, -1],
                  [9, -1],
                  [12, 1],
                  [15, 1]]
    else:
        zNoise = [[3, 0],
                      [6, 0],
                      [9, 0],
                      [12, 0],
                      [15, 0]]

    for elemIdx in range(len(zNoise)):
        if zNoise[elemIdx][0] <= numberOfPhases - 1:
            zPosList[zNoise[elemIdx][0]] += zNoise[elemIdx][1]

    ## For the target x position
    xMotionAmp = 6
    xMinPos = 42
    xPosList = getPhasesPositions(numberOfPhases, xMinPos, xMinPos+xMotionAmp)

    if motionNoise:
        xNoise = [[3, 1],
                  [6, -1],
                  [9, -1],
                  [12, 1],
                  [15, 1]]
    else:
        xNoise = [[3, 0],
                  [6, 0],
                  [9, 0],
                  [12, 0],
                  [15, 0]]

    for elemIdx in range(len(xNoise)):
        if xNoise[elemIdx][0] <= numberOfPhases-1:
            xPosList[xNoise[elemIdx][0]] += xNoise[elemIdx][1]

    xPosList = np.roll(xPosList, 2)
    # print('xPosList', xPosList)

    phaseList = []
    if returnTumorMasks:
        maskList = []
        for phaseIndex in range(numberOfPhases):
            phase,  mask = createSynthetic3DCT(targetPos=[xPosList[phaseIndex], 95, zPosList[phaseIndex]], diaphragmPos=diaphPosList[phaseIndex], spacing=spacing, returnTumorMask=returnTumorMasks)
            phaseList.append(phase)
            maskList.append(mask)

    else:
        for phaseIndex in range(numberOfPhases):
            phase = createSynthetic3DCT(targetPos=[xPosList[phaseIndex], 95, zPosList[phaseIndex]], diaphragmPos=diaphPosList[phaseIndex], spacing=spacing)
            phaseList.append(phase)

    CT4D.dyn3DImageList = phaseList
    if returnTumorMasks:
        return CT4D, maskList
    else:
        return CT4D

GENERATE SYNTHETIC INPUT IMAGES

fixed = CTImage()
fixed.imageArray = np.full((20, 20, 20), -1000)
fixed.imageArray[11:16, 5:14, 11:14] = 100.0

moving = copy.copy(fixed)
movingTrans = copy.copy(fixed)
movingRot = copy.copy(fixed)
movingBoth = copy.copy(fixed)

translation = np.array([-5, 0, -2])
rotation = np.array([0, -20, 0])
rotCenter='imgCenter'

Create a transform 3D

print('Create a transform 3D')
transform3D = Transform3D()
transform3D.initFromTranslationAndRotationVectors(transVec=translation, rotVec=rotation)
transform3D.setCenter(rotCenter)
print('Translation', transform3D.getTranslation())
print('Rotation', transform3D.getRotationAngles(inDegrees=True))

print('moving with transform3D')
moving = transform3D.deformData(moving, outputBox='same')

print('moving translation')
translateData(movingTrans, translationInMM=translation)
print('moving rotation')
rotateData(movingRot, rotAnglesInDeg=rotation, rotCenter=rotCenter, outputBox='same')
# movingRot = resampleImage3DOnImage3D(movingRot, fixedImage=fixed, fillValue=-1000)
print('moving both')
translateData(movingBoth, translationInMM=translation, outputBox='same')
rotateData(movingBoth, rotAnglesInDeg=rotation, rotCenter=rotCenter, outputBox='same')

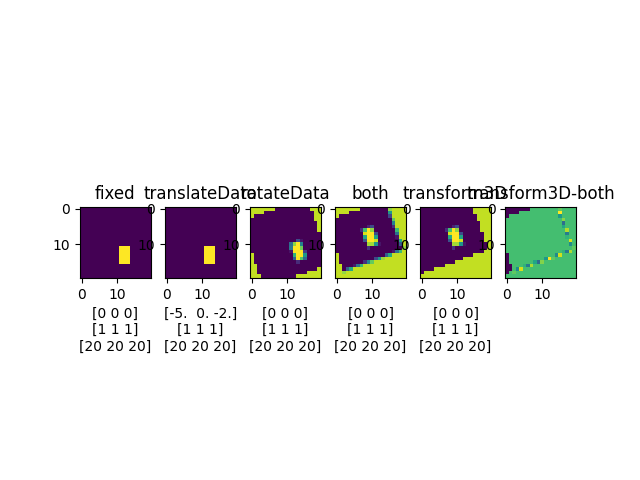

y_slice = 10

fig, ax = plt.subplots(1, 6)
ax[0].set_title('fixed')
ax[0].imshow(fixed.imageArray[:, y_slice, :])
ax[0].set_xlabel(f"{fixed.origin}\n{fixed.spacing}\n{fixed.gridSize}")

ax[1].set_title('translateData')
ax[1].imshow(movingTrans.imageArray[:, y_slice, :])
ax[1].set_xlabel(f"{movingTrans.origin}\n{movingTrans.spacing}\n{movingTrans.gridSize}")

ax[2].set_title('rotateData')
ax[2].imshow(movingRot.imageArray[:, y_slice, :])
ax[2].set_xlabel(f"{movingRot.origin}\n{movingRot.spacing}\n{movingRot.gridSize}")

ax[3].set_title('both')
ax[3].imshow(movingBoth.imageArray[:, y_slice, :])
ax[3].set_xlabel(f"{movingBoth.origin}\n{movingBoth.spacing}\n{movingBoth.gridSize}")

ax[4].set_title('transform3D')
ax[4].imshow(moving.imageArray[:, y_slice, :])
ax[4].set_xlabel(f"{moving.origin}\n{moving.spacing}\n{moving.gridSize}")

ax[5].set_title('transform3D-both')
ax[5].imshow(moving.imageArray[:, y_slice, :] - movingBoth.imageArray[:, y_slice, :])

plt.savefig(os.path.join(output_path, 'ExampleTransform3D.png'))
plt.show()

Create a transform 3D
Translation [-5. -0. -2.]
Rotation [ -0. -20.  -0.]
moving with transform3D
moving translation
moving rotation
moving both

Create a dynamic model with the transform

print(' --------------------- start test with model -----------------------------')

CT4D = createSynthetic4DCT(numberOfPhases=4)
# GENERATE MIDP
fixedDynMod = Dynamic3DModel()
fixedDynMod.computeMidPositionImage(CT4D, 0, tryGPU=True)

print(fixedDynMod.midp.origin, fixedDynMod.midp.spacing, fixedDynMod.midp.gridSize)
print('Resample model image')
fixedDynMod = resample(fixedDynMod, gridSize=(80, 50, 50))
print('after resampling', fixedDynMod.midp.origin, fixedDynMod.midp.spacing, fixedDynMod.midp.gridSize)

# option 3
for field in fixedDynMod.deformationList:
    print('Resample model field')
    field.resample(spacing=fixedDynMod.midp.spacing, gridSize=fixedDynMod.midp.gridSize, origin=fixedDynMod.midp.origin)
    print('after resampling', field.origin, field.spacing, field.gridSize)

showModelWithAnimatedFields(fixedDynMod)

movingDynMod = copy.copy(fixedDynMod)

rotateData(movingDynMod, rotAnglesInDeg=rotation, rotCenter=rotCenter, outputBox='same')

showModelWithAnimatedFields(movingDynMod)

•
•

 --------------------- start test with model -----------------------------
Dynamic 3D Sequence Created with  0 images
[0 0 0] [1 1 2] [170 170 100]
Resample model image
after resampling [0 0 0] [2.125 3.4   4.   ] [80 50 50]
Resample model field
after resampling [0 0 0] [2.125 3.4   4.   ] [80 50 50]
Resample model field
after resampling [0 0 0] [2.125 3.4   4.   ] [80 50 50]
Resample model field
after resampling [0 0 0] [2.125 3.4   4.   ] [80 50 50]
Resample model field
after resampling [0 0 0] [2.125 3.4   4.   ] [80 50 50]
/opt/hostedtoolcache/Python/3.12.12/x64/lib/python3.12/site-packages/matplotlib/animation.py:908: UserWarning: Animation was deleted without rendering anything. This is most likely not intended. To prevent deletion, assign the Animation to a variable, e.g. `anim`, that exists until you output the Animation using `plt.show()` or `anim.save()`.
  warnings.warn(

Generate synthetic input images

fixed = CTImage()
fixed.imageArray = np.full((20, 20, 20), -1000)
y_slice = 10

pointList = [[15, y_slice, 15], [15, y_slice, 10], [12, y_slice, 12], [10, y_slice, 10]]
for point in pointList:
    fixed.imageArray[point[0], point[1], point[2]] = 200

fieldFixed = VectorField3D()
fieldFixed.imageArray = np.zeros((20, 20, 20, 3))
vectorList = [np.array([2, 3, 4]), np.array([0, 3, 4]), np.array([7, 3, 3]), np.array([2, 0, 0])]
for pointIdx in range(len(pointList)):
    fieldFixed.imageArray[pointList[pointIdx][0], pointList[pointIdx][1], pointList[pointIdx][2]] = vectorList[
        pointIdx]

moving = copy.copy(fixed)
fieldMoving = copy.copy(fieldFixed)

Create a transform 3D

print('Create a transform 3D')
transform3D = Transform3D()
transform3D.initFromTranslationAndRotationVectors(transVec=translation, rotVec=rotation)
transform3D.setCenter(rotCenter)
print('Translation', transform3D.getTranslation())
print('Rotation', transform3D.getRotationAngles(inDegrees=True))

print('moving with transform3D')
moving = transform3D.deformData(moving, outputBox='same')
fieldMoving = transform3D.deformData(fieldMoving, outputBox='same')
moving = resampleImage3DOnImage3D(moving, fixedImage=fixed, fillValue=-1000)
print('fixed.origin', fixed.origin, 'moving.origin', moving.origin)
fieldMoving = resampleImage3DOnImage3D(fieldMoving, fixedImage=fixed, fillValue=0)
print('fieldFixed.origin', fieldFixed.origin, 'fieldMoving.origin', fieldMoving.origin)

print('ici ', fieldMoving.imageArray[10, y_slice, 10])

compXFixed = fieldFixed.imageArray[:, y_slice, :, 0]
compZFixed = fieldFixed.imageArray[:, y_slice, :, 2]
compXMoving = fieldMoving.imageArray[:, y_slice, :, 0]
compZMoving = fieldMoving.imageArray[:, y_slice, :, 2]

Create a transform 3D
Translation [-5. -0. -2.]
Rotation [ -0. -20.  -0.]
moving with transform3D
fixed.origin [0 0 0] moving.origin [0 0 0]
fieldFixed.origin [0 0 0] fieldMoving.origin [0 0 0]
ici  [0. 0. 0.]

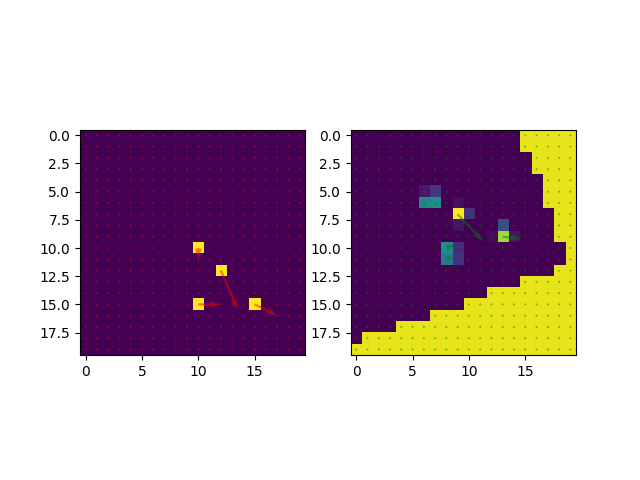

Display results

fig, ax = plt.subplots(1, 2)
ax[0].imshow(fixed.imageArray[:, y_slice, :])
ax[0].quiver(compZFixed, compXFixed, alpha=0.5, color='red', angles='xy', scale_units='xy', scale=2, width=.010)
ax[1].imshow(moving.imageArray[:, y_slice, :])
ax[1].quiver(compZMoving, compXMoving, alpha=0.5, color='green', angles='xy', scale_units='xy', scale=2, width=.010)
plt.show()

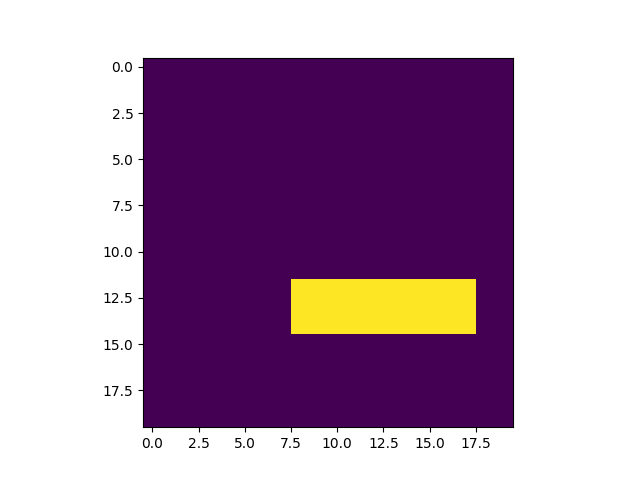

print('start ROIMask test')
fixedMask = ROIMask.fromImage3D(fixed)
fixedMask.imageArray = np.zeros(fixedMask.gridSize).astype(bool)
fixedMask.imageArray[12:15, 8:12, 8:18] = True
plt.figure()
plt.imshow(fixedMask.imageArray[:, y_slice, :])
plt.show()

print(fixedMask.origin, fixedMask.gridSize, fixedMask.spacing, fixedMask.imageArray.dtype)

movingMask = copy.copy(fixedMask)
movingMask = transform3D.deformData(movingMask, outputBox='same')

print(movingMask.origin, movingMask.gridSize, movingMask.spacing, movingMask.imageArray.dtype)

plt.figure()
plt.subplot(1, 2, 1)
plt.imshow(fixedMask.imageArray[:, y_slice, :])
plt.subplot(1, 2, 2)
plt.imshow(movingMask.imageArray[:, y_slice, :])
plt.show()

•
•
•

start ROIMask test
[0 0 0] [20 20 20] [1 1 1] bool
[0 0 0] [20 20 20] [1 1 1] bool
