4D Proton Optimization

author: OpenTPS team

This example shows how to create and optimize a 4D proton plan using OpenTPS.

running time: ~ 1 hours

Setting up the environment in google collab

import sys
if "google.colab" in sys.modules:
    from IPython import get_ipython
    get_ipython().system('git clone https://gitlab.com/openmcsquare/opentps.git')
    get_ipython().system('pip install ./opentps')
    get_ipython().system('pip install scipy==1.10.1')
    import opentps

imports

import os
import logging
import numpy as np
from matplotlib import pyplot as plt
import sys
import pydicom
import datetime
sys.path.append('..')

import the needed opentps.core packages

from opentps.core.data.images import CTImage
from opentps.core.data.images import ROIMask
from opentps.core.data.plan._protonPlanDesign import ProtonPlanDesign
from opentps.core.data import DVH
from opentps.core.data import Patient
from opentps.core.data.plan import FidObjective
from opentps.core.io import mcsquareIO
from opentps.core.io.dataLoader import readData
from opentps.core.io.scannerReader import readScanner
from opentps.core.io.serializedObjectIO import loadRTPlan, saveRTPlan
from opentps.core.processing.doseCalculation.doseCalculationConfig import DoseCalculationConfig
from opentps.core.processing.doseCalculation.protons.mcsquareDoseCalculator import MCsquareDoseCalculator
from opentps.core.processing.imageProcessing.resampler3D import resampleImage3DOnImage3D
from opentps.core.processing.planOptimization.planOptimization import IntensityModulationOptimizer
from opentps.core.processing.imageProcessing.resampler3D import resampleImage3DOnImage3D
from opentps.core.io.dicomIO import writeRTDose, readDicomDose


logger = logging.getLogger(__name__)

Output path

output_path = os.path.join(os.getcwd(), 'Exemple_Robust4DOptimization')
if not os.path.exists(output_path):
    os.makedirs(output_path)
logger.info('Files will be stored in {}'.format(output_path))

CT calibration and BDL

ctCalibration = readScanner(DoseCalculationConfig().scannerFolder)
bdl = mcsquareIO.readBDL(DoseCalculationConfig().bdlFile)

CT and ROI creation

Generic example: 4DCT composed of 3 CTs : 2 phases and the MidP. The anatomy consists of a square target moving vertically, with an organ at risk and soft tissue (muscle) in front of it.

CT4D = []
ROI4D = []
for i in range(0, 3):
    # ++++Don't delete UIDs to build the simple study+++++++++++++++++++
    studyInstanceUID = pydicom.uid.generate_uid()
    ctSeriesInstanceUID =  pydicom.uid.generate_uid()
    frameOfReferenceUID = pydicom.uid.generate_uid()
    # structSeriesInstanceUID = pydicom.uid.generate_uid()
    dt = datetime.datetime.now()
    #++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++

    # CT
    patient = Patient()
    patient.name = f'Miro_OpenTPS_4DCT'
    Patient.id = f'12082024'
    Patient.birthDate = dt.strftime('%Y%m%d')
    patient.sex = ""

    ctSize = 150
    ct = CTImage(seriesInstanceUID=ctSeriesInstanceUID, frameOfReferenceUID=frameOfReferenceUID)
    ct.name = f'CT_Phase_{i}'
    ct.patient = patient
    ct.studyInstanceUID = studyInstanceUID

    huWater = 50
    huTarget = 100
    huMuscle = 200
    data = huWater * np.ones((ctSize, ctSize, ctSize))

    # Muscle
    data[100:140, 20:130, 55:95] = huMuscle
    # OAR
    data[70:80, 70:80, 65:85] = huTarget
    # TargetVolume
    if i == 0 :
        data[25:45, 70:100, 65:85] = huTarget
    if i == 1 :
        data[25:45, 60:90, 65:85] = huTarget
    if i == 2 :
        data[25:45, 50:80, 65:85] = huTarget
    ct.imageArray = data
    # writeDicomCT(ct, output_path)

    #---------------------ROI
    ROI = []

    # TargetVolume
    TV = ROIMask()
    TV.patient = patient
    TV.name = 'TV'
    TV.color = (255, 0, 0)  # red
    data = np.zeros((ctSize, ctSize, ctSize)).astype(bool)
    if i == 0 :
        data[25:45, 70:100, 65:85] = True
    if i == 1 :
        data[25:45, 60:90, 65:85] = True
    if i == 2 :
        data[25:45, 50:80, 65:85] = True
    TV.imageArray = data
    ROI.append(TV)

    # Muscle
    Muscle = ROIMask()
    Muscle.patient = patient
    Muscle.name = 'Muscle'
    Muscle.color = (150, 0, 0)
    data = np.zeros((ctSize, ctSize, ctSize)).astype(bool)
    data[100:140, 20:130, 55:95] = True
    Muscle.imageArray = data
    ROI.append(Muscle)

    # OAR
    OAR = ROIMask()
    OAR.patient = patient
    OAR.name = 'OAR'
    OAR.color = (100, 0, 0)
    data = np.zeros((ctSize, ctSize, ctSize)).astype(bool)
    data[70:80, 70:80, 65:85] = True
    OAR.imageArray = data
    ROI.append(OAR)

    # Body
    BODY = ROIMask()
    BODY.patient = patient
    BODY.name = 'Body'
    BODY.color = (100, 0, 0)
    data = np.ones((ctSize, ctSize, ctSize)).astype(bool)
    data[np.where(OAR.imageArray)] = False
    data[np.where(Muscle.imageArray)] = False
    data[np.where(TV.imageArray)] = False
    BODY.imageArray = data
    ROI.append(BODY)

    CT4D.append(ct)
    ROI4D.append(ROI)

RefCT = CT4D[1]
RefTV = ROI4D[1][0]
RefOAR = ROI4D[1][2]
RefBody = ROI4D[1][3]

Design plan

beamNames = ["Beam1"]
gantryAngles = [90.]
couchAngles = [0.]

Configure MCsquare

mc2 = MCsquareDoseCalculator()
mc2.beamModel = bdl
mc2.nbPrimaries = 1e3
mc2.ctCalibration = ctCalibration

Load / Generate new plan

plan_file = os.path.join(output_path, f"RobustPlan_4D.tps")

if os.path.isfile(plan_file):
    plan = loadRTPlan(plan_file)
    logger.info('Plan loaded')

else:
    planDesign = ProtonPlanDesign()
    planDesign.ct = RefCT # Here, it's the MidP
    planDesign.targetMask = RefTV
    planDesign.gantryAngles = gantryAngles
    planDesign.beamNames = beamNames
    planDesign.couchAngles = couchAngles
    planDesign.calibration = ctCalibration

    # Robustness settings
    planDesign.robustness.setupSystematicError = [1.6, 1.6, 1.6]  # mm (sigma)
    planDesign.robustness.setupRandomError = [0.0, 0.0, 0.0]  # mm (sigma)
    planDesign.robustness.rangeSystematicError = 3.0  # %

    # 4D Evaluation mode
    planDesign.robustness.Mode4D = planDesign.robustness.Mode4D.MCsquareAccumulation # Or MCsquareSystematic
    planDesign.robustness.selectionStrategy = planDesign.robustness.Strategies.REDUCED_SET # RANDOM not available for MCsquareSystematic
    # planDesign.robustness.selectionStrategy = planDesign.robustness.Strategies.ALL (includes diagonals on sphere)
    # planDesign.robustness.selectionStrategy = planDesign.robustness.Strategies.RANDOM
    planDesign.robustness.numScenarios = 50 # Specify how many random scenarios to simulate, default = 100

    # # 4D settings : only for the mode MCsquareAccumulation with the RANDOM strategie
    # planDesign.robustness.Create4DCTfromRef = True
    # planDesign.robustness.SystematicAmplitudeError = 5.0  # %  # Only with RANDOM strategie
    # planDesign.robustness.RandomAmplitudeError = 5.0 # %
    # planDesign.robustness.Dynamic_delivery = True
    # planDesign.robustness.SystematicPeriodError = 5.0  # %   # Spot timing required. If not, we calculate them with SimpleBeamDeliveryTimings()
    # planDesign.robustness.RandomPeriodError = 5.0 # %
    # planDesign.robustness.Breathing_period = 1  # x100%    # default value

    planDesign.spotSpacing = 10.0
    planDesign.layerSpacing = 10.0
    planDesign.targetMargin = 7 # Enough to encompass target motion

    planDesign.defineTargetMaskAndPrescription(target = RefTV, targetPrescription = 60.)

    plan = planDesign.buildPlan()
    plan.rtPlanName = f"RobustPlan_4D"

    # refIndex :
    # ACCUMULATED -> Index of the Image in the 4DCT one wish we will accumulate the dose.
    ## SYSTEMATIC -> Index of the Image in the 4DCT who will be used as the nominal. So the one closer to the MidP. Or the Midp.

    nominal, scenarios = mc2.compute4DRobustScenarioBeamlets(CT4D, plan, refIndex=1, roi=ROI4D, storePath=output_path)

    plan.planDesign.beamlets = nominal
    plan.planDesign.robustness.scenarios = scenarios
    plan.planDesign.robustness.numScenarios = len(scenarios)
    saveRTPlan(plan, plan_file)

Set objectives

plan.planDesign.objectives.addFidObjective(RefTV, FidObjective.Metrics.DMAX, limitValue = 63.0, weight = 100.0, robust=True)
plan.planDesign.objectives.addFidObjective(RefTV, FidObjective.Metrics.DMIN, limitValue = 60.0, weight = 100.0, robust=True)
plan.planDesign.objectives.addFidObjective(RefOAR, FidObjective.Metrics.DMAX, limitValue = 40.0, weight = 80.0)
plan.planDesign.objectives.addFidObjective(RefBody, FidObjective.Metrics.DMAX, limitValue = 40.0, weight = 80.0)

Optimize treatment plan

DoseFile = 'DoseRobustPlan4D'
Dose_file = os.path.join(output_path, DoseFile + '.dcm')
if os.path.isfile(Dose_file):
    doseImage = readDicomDose(Dose_file)
    print('Dose imported')
else :
    plan.planDesign.ROI_cropping = False
    solver = IntensityModulationOptimizer(method='Scipy_L-BFGS-B', plan=plan, maxiter=150)
    # Optimize treatment plan
    doseImage, ps = solver.optimize()
    saveRTPlan(plan, os.path.join(output_path, "RobustPlan_4D_weighted.tps"))
    writeRTDose(doseImage, output_path, DoseFile)

/opt/hostedtoolcache/Python/3.11.13/x64/lib/python3.11/site-packages/pydicom/dataset.py:2710: UserWarning: Camel case attribute 'SoftwareVersion' used which is not in the element keyword data dictionary
  warn_and_log(msg)
/opt/hostedtoolcache/Python/3.11.13/x64/lib/python3.11/site-packages/pydicom/dataset.py:2710: UserWarning: Camel case attribute 'OperatorName' used which is not in the element keyword data dictionary
  warn_and_log(msg)
/opt/hostedtoolcache/Python/3.11.13/x64/lib/python3.11/site-packages/pydicom/dataset.py:2710: UserWarning: Camel case attribute 'Width' used which is not in the element keyword data dictionary
  warn_and_log(msg)
/opt/hostedtoolcache/Python/3.11.13/x64/lib/python3.11/site-packages/pydicom/valuerep.py:440: UserWarning: A value of type 'int64' cannot be assigned to a tag with VR US.
  warn_and_log(msg)
/opt/hostedtoolcache/Python/3.11.13/x64/lib/python3.11/site-packages/pydicom/dataset.py:2710: UserWarning: Camel case attribute 'Height' used which is not in the element keyword data dictionary
  warn_and_log(msg)
/opt/hostedtoolcache/Python/3.11.13/x64/lib/python3.11/site-packages/pydicom/dataset.py:2710: UserWarning: Camel case attribute 'ColorType' used which is not in the element keyword data dictionary
  warn_and_log(msg)
/opt/hostedtoolcache/Python/3.11.13/x64/lib/python3.11/site-packages/pydicom/dataset.py:2710: UserWarning: Camel case attribute 'BitDepth' used which is not in the element keyword data dictionary
  warn_and_log(msg)

Display results

target_DVH = DVH(RefTV, doseImage)
print('TV -> D95 = ' + str(target_DVH.D95) + ' Gy')
print('TV -> D5 = ' + str(target_DVH.D5) + ' Gy')
print('TV -> D5 - D95 =  {} Gy'.format(target_DVH.D5 - target_DVH.D95))

oar = resampleImage3DOnImage3D(RefOAR, ct)
oar_DVH = DVH(oar, doseImage)
print('OAR -> D95 = ' + str(oar_DVH.D95) + ' Gy')
print('OAR -> DMAX = ' + str(oar_DVH.Dmax) + ' Gy')

Body = resampleImage3DOnImage3D(RefBody, ct)
Body_DVH = DVH(Body, doseImage)
print('Body -> D95 = ' + str(Body_DVH.D95) + ' Gy')
print('Body -> DMAX = ' + str(Body_DVH.Dmax) + ' Gy')

TV -> D95 = 37.26806640624996 Gy
TV -> D5 = 80.7861328125 Gy
TV -> D5 - D95 =  43.51806640625004 Gy
OAR -> D95 = 23.62060546875 Gy
OAR -> DMAX = 76.134 Gy
Body -> D95 = 0 Gy
Body -> DMAX = 125.65039 Gy

center of mass

RefTV = resampleImage3DOnImage3D(RefTV, RefCT)
COM_coord = RefTV.centerOfMass
COM_index = RefTV.getVoxelIndexFromPosition(COM_coord)
Z_coord = COM_index[2]

img_ct = RefCT.imageArray[:, :, Z_coord].transpose(1, 0)
contourTargetMask = RefTV.getBinaryContourMask()
img_mask = contourTargetMask.imageArray[:, :, Z_coord].transpose(1, 0)
img_dose = resampleImage3DOnImage3D(doseImage, RefCT)
img_dose = img_dose.imageArray[:, :, Z_coord].transpose(1, 0)

contourTargetMask0 = ROI4D[0][0].getBinaryContourMask()
img_maskP1 = contourTargetMask0.imageArray[:, :, Z_coord].transpose(1, 0)
contourTargetMask2 = ROI4D[2][0].getBinaryContourMask()
img_maskP2 = contourTargetMask2.imageArray[:, :, Z_coord].transpose(1, 0)
contourOAR = RefOAR.getBinaryContourMask()
img_OAR = contourOAR.imageArray[:, :, Z_coord].transpose(1, 0)

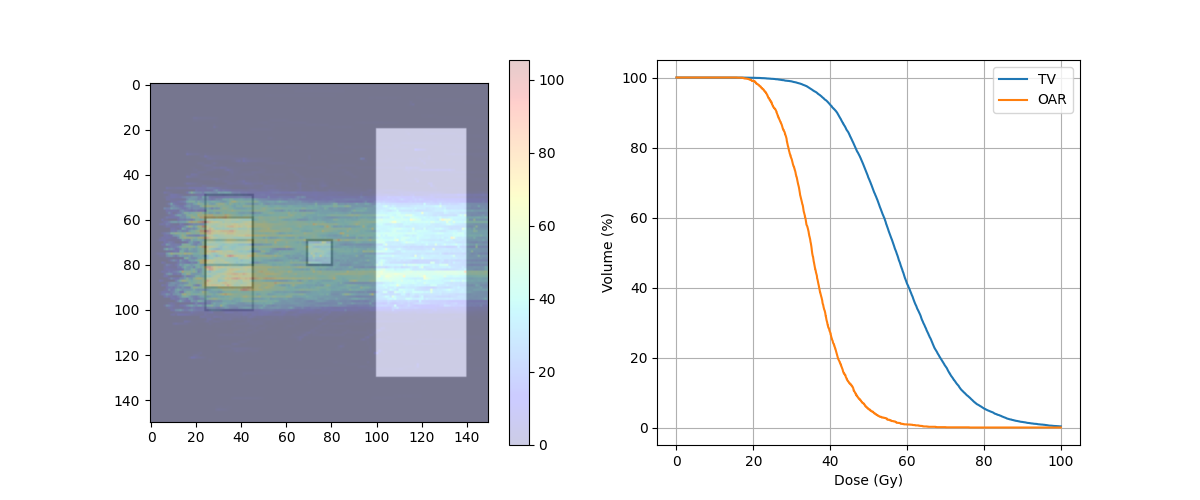

Display dose

fig, ax = plt.subplots(1, 2, figsize=(12, 5))
ax[0].imshow(img_ct, cmap='gray')
ax[0].imshow(img_mask, alpha=.2, cmap='binary')  # PTV
ax[0].imshow(img_maskP1, alpha=.2, cmap='binary')
ax[0].imshow(img_maskP2, alpha=.2, cmap='binary')
ax[0].imshow(img_OAR, alpha=.2, cmap='binary')
dose = ax[0].imshow(img_dose, cmap='jet', alpha=.2)
plt.colorbar(dose, ax=ax[0])
ax[1].plot(target_DVH.histogram[0], target_DVH.histogram[1], label=target_DVH.name)
ax[1].plot(oar_DVH.histogram[0], oar_DVH.histogram[1], label=oar_DVH.name)
ax[1].set_xlabel("Dose (Gy)")
ax[1].set_ylabel("Volume (%)")
plt.grid(True)
plt.legend()

plt.savefig(f'{output_path}/DoseRobustOptimization_4D.png', format = 'png')
plt.show()
